Nhà /Sản phẩm/Khuôn chai nhựa/Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head

Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head

$15,000/sets 1-2 sets
giá bán
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Kiểm tra đầu ra video: Cung cấp
báo cáo thử nghiệm máy móc: Không có sẵn
Thành phần cốt lõi: Á hậu, xe đạp dầu
Nhựa Gia Công: PP, HDPE, PC, ABS, PVC, PE, ABS/PP, PE/PP, HDPE/PP
Nơi xuất xứ: Giang Tô, Trung Quốc
brand name: DAWSON
Điện áp: 380V/50Hz
Kích thước(l*w*h): 900*500*1200MM
Lực kẹp (kN): Không có
thương hiệu plc: KHÔNG
Tỷ lệ L/D trục vít: 25
Đường kính trục vít (mm): 100 mm
công suất (kg/h): 60 kg/giờ
Tự động hóa: Tự động
Số vùng gia nhiệt trục vít: 4
công suất sưởi trục vít (kw): 5kw
công suất động cơ máy đùn (kw): 15 Kw
kích thước trục lăn khuôn (chiều rộng) (mm): 290 mm
kích thước trục lăn khuôn (chiều cao) (mm): 320mm
áp suất không khí (mpa): 0,8 MPa
tiêu thụ không khí (m³ / phút): 0,6 m³/phút
công suất làm nóng đầu khuôn (kw): 22 Kw
Công suất (kW): 35
trọng lượng (t): 2
điểm bán hàng chính: Tuổi thọ dài
Bảo hành: 1 năm
Vật liệu: 42CrMo
Phần mềm thiết kế: Pro-E
Ứng dụng: Máy ép đùn thổi
Số đầu chết: 1
khoảng cách trung tâm đầu chết: theo mẫu
Chất liệu nhựa: HDPE/PP/PVC/ABS/LDPE
Tên sản phẩm: chết đầu
Cuộc sống đầu chết: tối thiểu 8 năm
xử lý bề mặt chết: Gương đánh bóng
Tình trạng: Mới
Bảo hành các thành phần cốt lõi: 1 năm
Các ngành áp dụng: Các cửa hàng sửa chữa máy móc, nhà máy sản xuất, nhà máy thực phẩm và đồ uống
Vị trí phòng trưng bày: Mexico, Colombia, Nam Phi
Năm: 2023
Khối lượng phần rỗng: 30L
Dung tích bình tích áp(L): 6 L
Cảng: Thượng Hải
Làm nổi bật:

Accumulator Type Die Head

,

Single Layer Die Head

,

50L Capacity Extrusion Blow Molding Die Head
Thông tin cơ bản
Chứng nhận: CE
Thanh toán
chi tiết đóng gói: Đầu khuôn máy ép đùn thổi được đóng gói trong vỏ gỗ tiêu chuẩn xuất khẩu
Khả năng cung cấp: 20 Bộ/Bộ mỗi tháng
Mô tả sản phẩm
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 0
Products Description


DAWSON MACHINERY & MOULD GROUP

Extrusion Blow Molding Machine Die Head
Die head, is a very important part of extrusion blow molding machine. From the die head, the melted resin come out as a tubular parison. Thought the die head, we can adjust the thickness of the parison for different products. The mould pick up the parison come out from the die heads, then forming to be the finished products.
There are not only one division for the die head. If we divide by processing method, there are continuous type die head and
accumulator type die head.
If we divide based on head numbers, then there are single die head and multi die head, we have 2/3/4/6/8/10/12 heads for different product application. And we also can divide the die heads by layer number, there are die head for monolayer and die head for multi-layer.

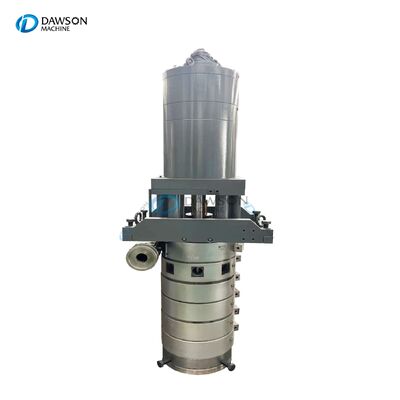

Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 1
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 2
Technical Parameters
Type of die head by processing method
continuous type die head, accumulator type
Type of die head by head numbers
1/2/3/4/6/8/10/12
Type of die head by layer numbers
1/2/3/4
Center distance
Multi heads die head, center distance can be customized
Material suitable
HDPE/LDPE/PP/PVC/EVOH/TPU/TPV/ABS/Tritan/PPSU, etc.
Material of die head
42CrMo steel
Application
Extrusion blow molding for plastic bottles, jerry cans, drums, IBC tanks, toys, table sheets, chairs, floaters, traffic barriers, etc.
Details Images

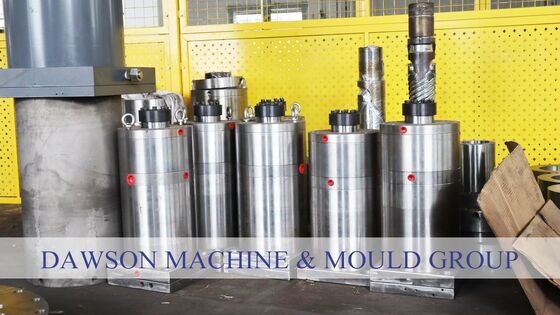

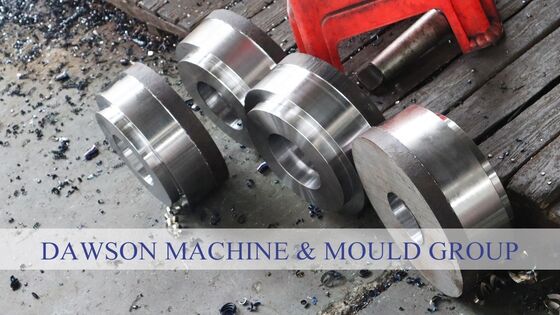

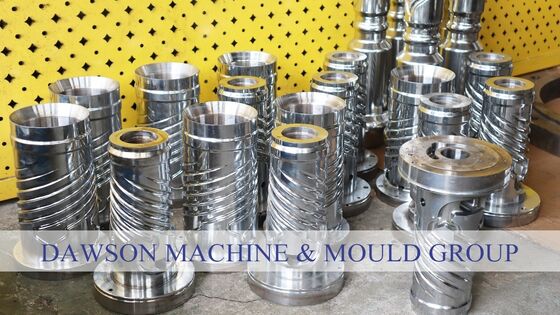

Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 3
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 4
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 5
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 6
Photos Reference
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 7
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 8
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 9
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 10
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 11
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 12
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 13
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 14
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 15

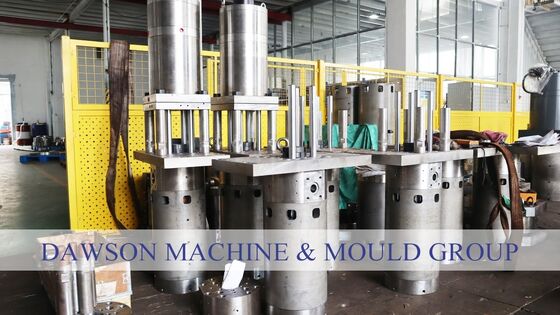

Professional Workshop
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 16
Company Profile


DAWSON MACHINERY & MOULD GROUP


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in
Saudi Arabia, Colombia, Panama, South Africa ...
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 17

DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

Customer Photos
We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 18
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 19
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 20
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 21
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 22
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 23
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 24
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 25
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 26
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 27
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 28
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 29
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 30
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 31
Our Service
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 32
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 33
FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
