Nhà /Sản phẩm/Máy thổi đùn/13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding

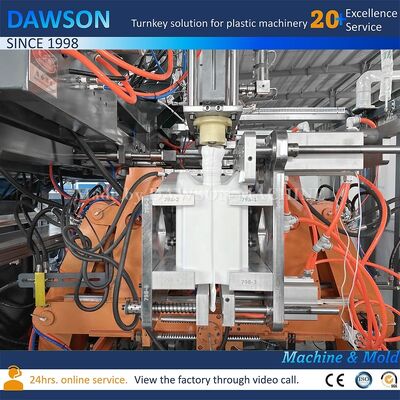

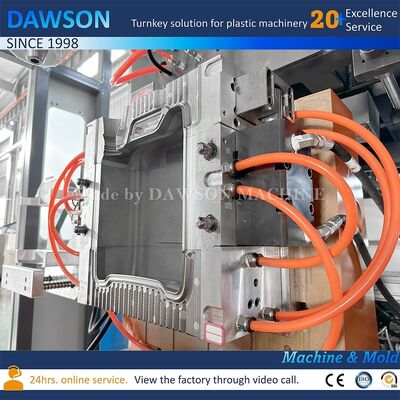

13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding

$49,800/sets 1-1 sets
giá bán
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Kiểm tra đầu ra video: Cung cấp
Báo cáo thử nghiệm máy móc: Cung cấp
Thành phần cốt lõi: PLC, Động cơ, Vòng bi, Hộp số, Động cơ, Bánh răng
Nhựa gia công: PP, HDPE, PVC, PE/PP
Nơi xuất xứ: Giang Tô, Trung Quốc
brand name: DAWSON
Điện áp: 220V, 380V, 415V, 440V, v.v.
kích thước(l*w*h): 3,8*2,2*2,4
Kẹp lực (KN): 110
Tỷ lệ L/D trục vít: 24
Đường kính vít (mm): 70
Đầu ra (kg/h): 60
Tự động hóa: Tự động
Số vùng gia nhiệt trục vít: 3
Công suất gia nhiệt trục vít (kW): 13,8
Công suất động cơ máy đùn (kW): 22
Kích thước trục lăn khuôn (Chiều rộng) (mm): 350
Kích thước lòng khuôn (Chiều cao)(mm): 490
Áp suất không khí (MPA): 0,6
Tiêu thụ không khí (m³ / phút): 1.4
Công suất làm nóng đầu khuôn (kW): 3
Công suất (kw): 49.4
Trọng lượng (T): 6
Điểm bán hàng chính: Dễ dàng vận hành
Bảo hành: 1 năm
ga tàu: ga đôi
Số đầu chết: 1/2/3/4
Tối đa. Khối lượng sản phẩm: 500ml
hệ thống kẹp: Chuyển loại hệ thống kẹp
Chất liệu phù hợp: PP, PP
Hệ thống thủy lực: Thủy lực servo
Công suất động cơ bơm dầu: 11kw
Lực kẹp: 110kW
Hành trình mở khuôn: 250-600mm
Hành trình di chuyển khuôn: 460mm
Thông tin cơ bản
Thanh toán
Mô tả sản phẩm
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 0
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 1
Extrusion Blow Molding Machine DSB90
The whole blow molding machine is equipped with bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 2
Machine Model
Max. Bottle size
DSB90II
Bouble Station Single Head
10L
SPECIFICATIONS
UNITS
DSB90II
Station
double
Max product volume
L
10
Number of die heads
Set
1/2/3/4/6
Dry cycle
PC/H
700*2
Machine dimension (L*W*H)
M
4.4*2.2*2.7
Total weight
Ton
11
CLAMPING UNIT
Clamping force
KN
160
Platen opening stroke
mm
290-680
Platen size
mm
550*530
Max mould size (W*H)
mm
550*530
Platen moving distance
mm
620
POWER
Extrusion motor power
KW
45
Oil pump motor power
KW
18.5
Extrusion heating power
KW
16
Head heating power
KW
8-10
Total power
KW
87.5-89.5
EXTRDER UNIT
Screw diameter
mm
90
Screw L/D ratio
L/D
25
Plasticizing capacity
Kg/hour
150
Number of heating zone
Zone
4
Max die mouth diameter(single head)
mm
200


Click here to send us messages >>Send Inquiry...

13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 3
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 4
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 5
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 6
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 7
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 8
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 9
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 10
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 11
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 12
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 13
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 14
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 15
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 16

DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 17
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 18
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 19
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 20
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 21
13.8kw Screw Heating Power Double Station Canister Making Machine for PE Plastic Pesticide Bottle Extrusion Blow Molding 22

Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .

Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
